150W (275Wpf) 3 outputs UPS Ethernet uninterruptible power supply battery chargers
AC/DC Battery chargers, AC/DC UPS

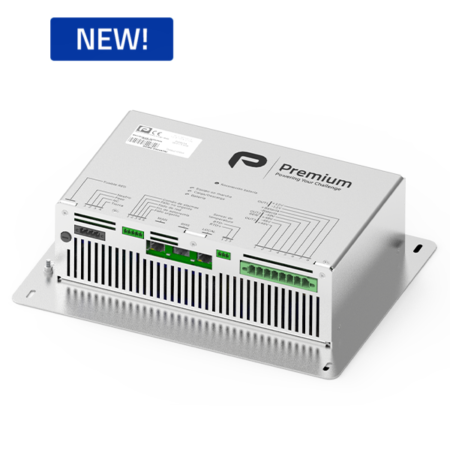

EDT-150
The EDT-150 are 150W DC UPS for 12V batteries and offer outputs of 12V and 48V. They are specially designed for applications in the 4.0 industry, Internet of Things and smart grids.
KEY FEATURES
- Full operation without need of battery
- 2 independent 48Vdc outputs
- Local monitoring with 8 LEDs
- Remote monitoring with 4 alarm relays
- Monitoring and configuration via RJ45/Ethernet
- Protocols TCP/IP, DHCP, ICMP, HTTP, SNTP, LDAP
- Embedded WEB server
- Battery capacity test without heat dissipation
- 3kVac isolation (5kV surges)
- Temperature sensor
PRODUCT WARRANTY
3 YEARS
| wdt_ID | EDT-150 | OUT-1 | OUT-2 | OUT-3 | Total power | Peak power | Battery | Input isolation | Housing |
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP0715 | 12V / 16A 25Apk | 48V / 2.2A 5.2Apk | 48V / 0.83A 0.83Apk | 150W | 250W | 12V | 3000 Vrms | Aluminium case |
