Industrial 140W DC/DC converter

Downloads

Data sheet 3D Drawing

Industrial 100 -140W DC/DC converters

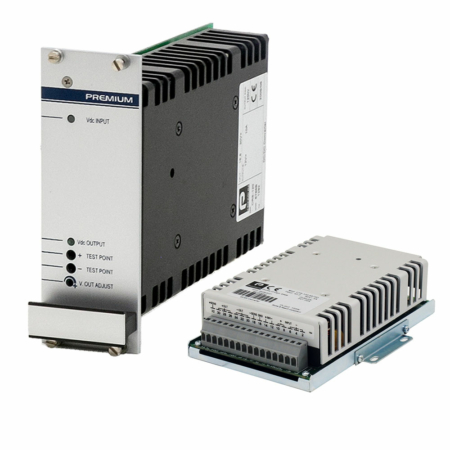

CRS-120

The CRS-120 series consists of DC/DC converters up to 140W with multiple input/output combinations. Its robustness allows its use in all types of demanding industrial applications.

KEY FEATURES

  • Switching frequency: 140KHz
  • High input-output isolation
  • Standard size Eurocard 3U
  • Adjustable output voltage
  • Remote sensing
  • Input voltage OK LED
  • Output voltage presence LED
  • Remote inhibit
  • Efficiency up to 89%

PRODUCT WARRANTY

3 years
SKU: CRS-120 Category: Tags: , , , ,
wdt_IDCRS-12012Vin 9V ... 15V24Vin 18V ... 30V48Vin 36V ... 72V72Vin 50,4V ... 90V110Vin 77V ... 144V220Vin 165V ... 275V
1CRS-120-6761*CRS-120-6765*CRS-120-6769CRS-120-6773*CRS-120-6777CRS-120-6781*
25VoutCheck availabilityCheck availability100WCheck availability100WCheck availability
3CRS-120-6762CRS-120-6766CRS-120-6770CRS-120-6774CRS-120-6778CRS-120-6782*
412Vout100W120W120W120W120WCheck availability
5CRS-120-6763CRS-120-6767CRS-120-6771CRS-120-6775CRS-120-6779CRS-120-6783
624Vout120W120W140W140W140W140W
7CRS-120-6764CRS-120-6768CRS-120-6772CRS-120-6776*CRS-120-6780CRS-120-6784*
848Vout120W120W140WCheck availability140WCheck availability

Quick Vision

FEATURES

MTBF1M+@40ºC

Extreme reliability

Easy install: wall mount, DIN rail, rack mount



TERMINAL OPTIONS

There are two connecting options:
• DIN-41612-H15 connector
• Spring clamp terminals.



More info

The CRS-120 series are DC-DC converters with a galvanic isolation between input and output. The converters operate at a fixed switching frequency and use push-pull converter topology. The device is also protected against reverse polarity input voltage, and the input fuse blows if an improper connection is made.

Accessories

accesories_crs120

19″ rack front panel (3U 9TE)
Mounting base
DIN rail mounting Kit
Redundant connection

How to order

order_crs120

Accessories must be ordered in a separated order line
