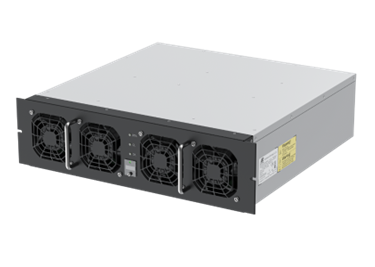

30kW Bidirectional AC/DC Power Module
bbc-30k
30kW Bidirectional AC/DC Power Module
The BBC-30K is a 30 kW bidirectional AC/DC power module designed for OEM integration into battery-based energy systems. It enables controlled bidirectional energy transfer between a three-phase AC network and high-voltage DC battery systems for charging, discharging and power conversion applications.
With a three-phase AC input range of 180–460 Vac and a DC voltage range of 150–1000 Vdc, the BBC-30K supports high-voltage battery architectures used in BESS, V2G, V2H, microgrid and bidirectional power conversion applications. Its regulated DC output delivers up to 30 kW with 95.5% typical efficiency, supporting CC/CV/CP control modes and grid-forming operation.
The module integrates a built-in DC pre-charge circuit for direct connection up to 1000 Vdc, independent CAN communication channels for the DC and AC sides, and top-layer potting protection for environments with high humidity and heavy dust.
Output power up to 30 kW @ 400/415 Vac, three-phaseAC input range: three-phase 180–460 Vac (line-to-line)DC voltage range: 150–1000 VdcTypical efficiency: 95.5% at full loadBidirectional AC/DC power conversionCC/CV/CP control modesGrid-connected and grid-forming operationBuilt-in DC pre-charge circuit — direct connection up to 1000 VdcCAN bus interface — DC side and AC side independent channelsTop-layer potting protection for high humidity and heavy dust environments
KEY FEATURES:
-
- Output power up to 30 kW @ 400/415 Vac, three-phase
- AC input range: three-phase 180–460 Vac (line-to-line)
- DC voltage range 150–1000 Vdc (programmable CV/CC)
- Typical efficiency 95.5% at full load
- Bi-directional CC/CV/CP control (DC side, Mode 4)
- Built-in DC pre-charge circuit — direct connection up to 1000 Vdc
- CAN bus interface — DC side and AC side independent channels
- Top-layer potting for high humidity and heavy dust environments
Product warranty
3 years
| Product reference | Mode | Energy flow | AC range | DC range | Max current | Total power |
|---|---|---|---|---|---|---|
| BBC-30K-35831 | Charging | AC → DC | 180–460 Vac (L-L) | 150–1000 Vdc | 100 A DC | 30 kW |
| BBC-30K-35831 | Grid-forming | DC → AC | 120–265 Vac (L-N) | 150–1000 Vdc | 43.5 A AC | 30 kVA |
| BBC-30K-35831 | Grid-connected P/Q | AC ↔ DC | 180–460 Vac (L-L) | 150–1000 Vdc | ±100 A DC | ±30 kVA |
| BBC-30K-35831 | Bidirect. CC/CV/CP | AC ↔ DC | 180–460 Vac (L-L) | ±100 A DC / 58 A AC | 43.5 A AC | ±30 kW |
