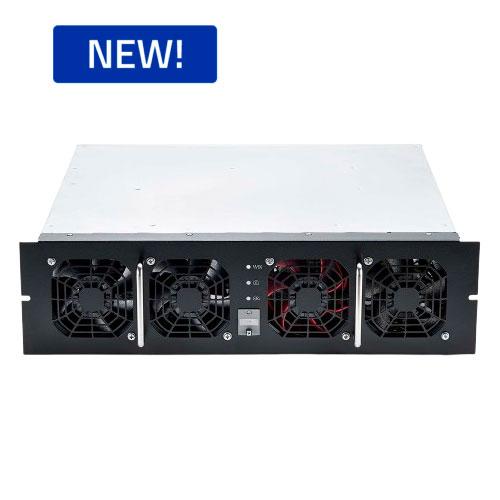

50 kW Three-Phase Charger Module
BDS-50k
50 kW Three-Phase Charger Module
The BDS-50k is a high-power, rack-mountable AC/DC conversion module engineered for demanding fast-charging and industrial energy systems. It supports a wide three-phase AC input range from 260 Vac to 530 Vac (L–L) and delivers a fully regulated DC output adjustable from 150 Vdc to 1000 Vdc, ensuring compatibility with next-generation battery technologies.
With up to 50 kW output power, 97.2% efficiency at full load and 97.6% peak efficiency, the BDS-50k ensures outstanding energy performance, reduced thermal losses and optimal system integration. Its low acoustic noise (55 dB at rated load) and Class B EMC compliance (IEC 61851-21-2) enable deployment in residential, commercial and industrial environments.
Designed for reliability in harsh conditions, the unit operates from –40 °C to +75 °C, delivering full power up to +55 °C with linear derating above this point. The BDS-50k integrates full electronic protection (OTP, OVP, UVP, OCP, short-circuit) and features CAN 2.0 communication for seamless control and monitoring.
KEY FEATURES:
- 50 kW output power
- 97.2% efficiency at full load, 97.6% peak
- 260–530 Vac (three-phase) input range
- 150–1000 Vdc output range
- Low acoustic noise: 55 dB
- Protections: OTP, OVP, UVP, OCP, short-circuit
- Operating temperature −40 °C to +75 °C
- CAN 2.0 communication
- Compact size: 390 × 385 × 110 mm, 23 kg
Downloads
Datasheet| Part Number | Input Voltage Range [VDC] | Output Voltage Range [VDC] | Output Current max. [A] | Efficiency typ. [%] | Output Power max. (1) [W] |
|---|---|---|---|---|---|
| BDS-50k | 260-530 (L-L) | 800 Vdc | 166.6 A @ 300 Vdc | 97.2% (97.6% peak) | 50,000 W |
