More information

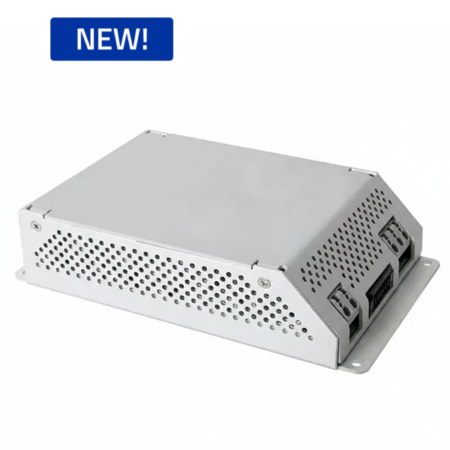

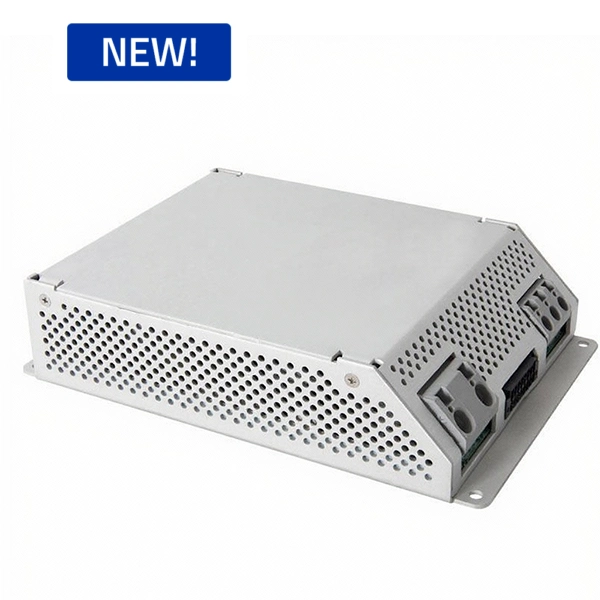

The Premium PSU’s CLS-300 DC/DC converters feature reinforced insulation with 6 mm air/creepage distances. Their chassis mountable format makes them a reliable solution for environments with vibration or electrical variability.
The metal base plate allows installation in any orientation and ensures optimal thermal management for OT4 + ST1 & ST2 class applications, enabling an operating temperature range from –40 °C to +85 °C without derating.
The CLS-300 model is designed for consistent performance, with a typical efficiency up to 94.8%. It is a Plug&Play unit, easy to configure and ready to use.
This series complies with all railway and transportation standards, including EN50155, EN50121-3-2, DB-EMV06, EN50124-1, EN50125-1, EN61373 1B, EN62368-1, and EN45545-2.
HOW TO ORDER
Without suffix= standard operating range (-40°C …+90°C)
*Cooming soon. Add suffix “-E” for extended ambient temperature range (-50°C …+90°C)
