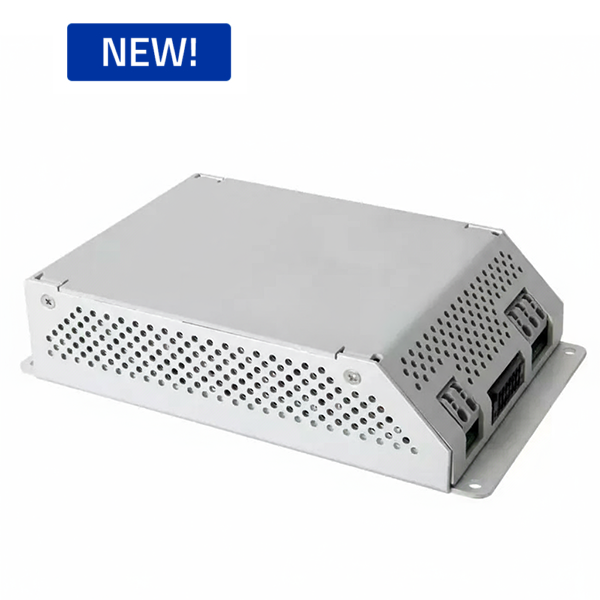

Railway 150W DC/DC Converter
CLS-150
Railway 150W DC/DC Converter
The CLS-150 is a DC/DC converter specifically designed for railway and transportation applications, compliant with EN50155, EN50121-3-2, EN50124-1, EN61373, EN62368-1, and EN45545-2 standards, among others. Its chassis mountable design ensures easy installation and exceptional reliability even under demanding conditions.
With a wide input range of 11:1 (14.4 VDC to 154 VDC), the CLS-150 covers nominal voltages of 24, 36, 48, 72, and 110 VDC in a single model, making it suitable for all types of railway vehicles and configurations. Its regulated and isolated 24 VDC output delivers a maximum output power of 165 W with an efficiency of up to 94%, ensuring stable and efficient operation.
Thanks to its base plate mounting and optimized thermal design, the CLS-150 provides full power up to +85 °C without the need for a heat sink or derating. In addition, it integrates active input reverse polarity protection, active inrush current limitation and a 10ms hold-up time across the entire input range.
PRINCIPALES CARACTERÍSTICAS:
- Operating temperature: -40 °C to +85 °C (OT4 + ST1 & ST2 class applications).
- 10% peak power capability for 10 s.
- Plug&Play design for easy setup and ready-to-use integration.
- Parallel and redundant operation.
- Compliance with transportation standards: EN50155, EN50121-3-2, DB-EMV06, EN50124-1, EN50125-1, EN61373 1B, EN62368-1, EN45545-2.
Product warranty
2 years
| Part Number | Input Voltage Range [VDC] | Output Voltage Range [VDC] | Output Current max. | Efficiency typ. [%] | Output Power max. |
|---|---|---|---|---|---|
| CLS-150-6517 | 16.8-137.5 | 24 | 6.88 | 94 | 165 |
