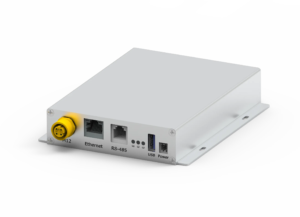

The modular Gateway Premium Vision solution extends the communication of equipment without access to Ethernet or with a single protocol to multiple protocols. This hardware connects to several of our solutions to provide information to all and transfer it to the end user through two Ethernet connectors (1xRJ45, 1xM12).

Gateway has a flexible design that adapts to the needs of the project and includes a SoM (System on Module) with embedded Linux. It has a wide operating temperature range  (-40ºC … 70ºC) and complies to all standards required for safe and efficient railway transport applications, such as EN 50155: 2021, EN 50121-3-2: 2016, IEC 62236-3-2: 2018, EN 50121-4: 2016 and IEC 62236-4: 2018.

The module allows:

• Collecting information through CAN, RS485 and RS232 protocols.
• Gathering data and operating automatically with protocols designed with API REST, SNMP or MODBUS over ethernet.
• Monitoring external digital inputs.
• Acting on external digital output signals.
• RTC without batteries up to 7 days.
• Reading external analog signals (optional).
• Power over Ethernet, PoE (optional).
